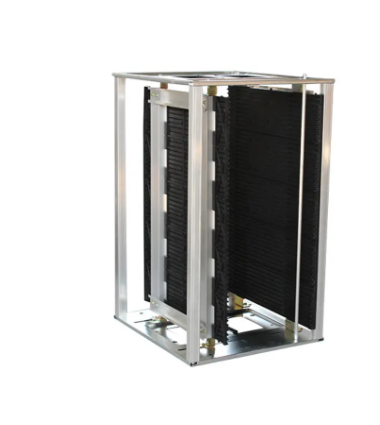

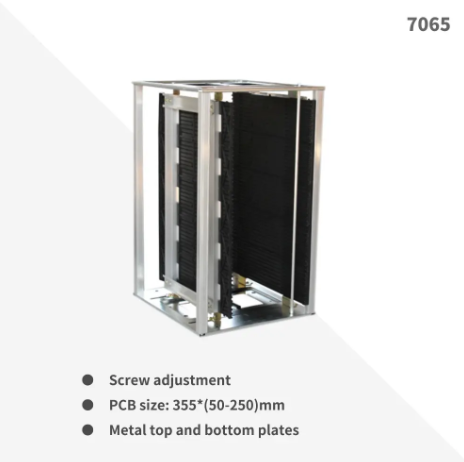

PCB ESD MAGAZINE RACK 355*320*563mm

Surface resistance: 100000-10000000

Temperature resistance 85-125°C

Dimensions: 355*320*563mm, (can hold 50pcs PCB)

The use of PCB board specification: 355*(50-250)mm

Side plate guide groove depth: 3.5mm, groove width 5mm, pitch: 10mm

The upper and lower bottom plates are metal bottom plates suitable for the PCB board’s fixed size and long-distance storage and transportation.)
